Product Overview
Overview
X3N-H0404 is a cost-effective device specially developed for mobile video surveillance and remote video monitoring, featuring high functional scalability. It is equipped with a high-speed processor and an embedded operating system, integrating state-of-the-art H.265 video compression/ decompression technologies, 3G/4G network technologies, GPS/BDS positioning technologies, and Wi-Fi technology in the IT industry. It supports recordings in formats of 1080p, 720p, WD1, WHD1, WCIF, D1, HD1, and CIF. Moreover, it allows recording vehicle driving information and uploading videos remotely. It can also be used with the center software to support alarm linkage by providing central remote video surveillance, intelligent vehicle dispatching management, and playback analysis based on the central database.
Features
-
Embedded Linux operating system
-
AHD with AI function extension
-
H.265/H.264 encoding and decoding to improve the memory space utilization
-
2.5-inch hard disk, hard disk heating & hard disk power-off protection technologies
-
Remote upgrade and maintenance;
-
Good anti-vibration performance, simple design, flexible and easy installation
-
Comprehensive functions and high reliability
-
Connection with storage units such as a fireproof box for disaster recovery backup
-
HD VGA output
VIDEO:
SPEC:
Function Overview | Preview, Recording, Playback, Network, Locating | |
System | OS | Linux |
Control Mode | CP4, Easy Check, Network (3G/4G/WIFI), Mouse | |
Video | Input |
AHD*6+IPC*2 |
Output |
2 CH (CP4+VGA) |
|
Total Resource |
PAL: 6*720P@15fps(AHD)+2*1080P@30fps(IPC) or4*1080P@10fps(AHD)+2*1080P@30fps(IPC) or4*720P@25fps(AHD)+2*1080P@30fps(IPC) NTSC : 6*720P@15fps(AHD)+2*1080P@30fps(IPC) or4*1080P@12fps(AHD)+2*1080P@30fps(IPC) or4*720P@30fps(AHD)+2*1080P@30fps(IPC) |
|
Video Signal Standard | Electrical level: 1Vpp Impedance: 75Ω NTSC/PAL Optional | |
Audio | Input |
8 CH (AHD*6+IPC*2 ) |
Output | 1 channel | |
Audio Signal Standard | Electrical level: 2Vpp Input impedance: 4.7kΩ | |
Display | Display Split | 1/4/9 Image display |
OSD | GPS information, alarm, temperature, acceleration, voltage, device information, software version, MCU version, network status | |
Operation Interface | Semi-transparent GUI | |
Recording | Video/Audio Compression | Video:H.264/H.265 |
Audio: ADPCM, G.711A, G.711U | ||
Image Resolution |
PAL: 1080P(1920X1080), 720P(1280X720), WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288) NTSC: 1080P(1920X1080), 720P(1280X720), WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240),CIF(352x240); Digital: 1080P(1920X1080), 720P(1280X720) |
|
Image Quality | 8 Levels adjustable (Level 1 is the best) | |
Recording Mode | Schedule/Alarm(sensor trigger, speed, acceleration, video loss, temperature) | |
Pre-recording | 0-60minutes | |
Post-recording | 0-30 minutes | |
Mirror Recording | Yes | |
Playback | Playback Channel |
1/4 channel by local playback, supports WEB 1/4/8 channel by local playback |
Search Mode | Date/time, channel, event | |
Network | 3G/4G | EVDO/WCDMA/TDD-LTE/FDD-LTE |
WIFI | 802.11b/g/n | |
Ethernet | RJ45 x 1 (10/100 M) | |
IPC Ethernet |
2 x 6-pin DIN JACK (10/100M PON port, power supply) 2 x 6-pin DIN JACK (10/100M Network port, no power supply) |
|
Locating | GPS | Location tracking, speed detection and time sync |
Sensor |
G-Sensor |
Built-in 6-axis inertial sensor |
Storage |
HDD/SSD |
1 x2.5"SATA HDD or SSD, thickness 7mm/9.5mm/15mm, supports hard disk heating |
SD | Support SDXC 32GB/64GB/128GB/256GB, plug and play | |
Interface | USB |
1 x USB2.0(Type A)+ 1 x USB2.0(Type B), hot swap |
SD | SD slot x 1 | |
SIM | SIM slot x 2 | |
Serial |
2 x RS232, 1 x RS485, 1 x CAN |
|
Speed | 1 channel pulse speed detection | |
Control Panel |
Touch panel CP4 Optional | |
Intercommunication | 1 MIC interface | |
Power | Input | DC8-36V, ACC |
Output | 5V@500mA, 12V@500mA | |
Max Power Consumption |
46W |
|
Standby Power Consumption | ≈0W | |

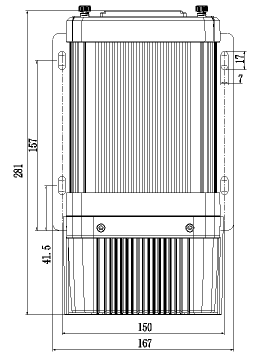

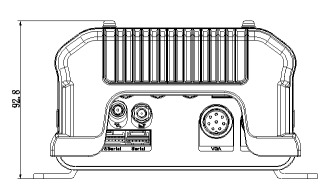

Physical Characteristic | Dimension (L × W × H) |
281x167x92.8 (with bracket and rear shield) |
Weight |
2.2KG (not include HDD) |
|
Environment | Operating Temperature |
-40℃ ~+70℃ (with heating and no HDD) |
Operating Relative Humidity |
8%-95%(No condensation) |
PHOTO:
